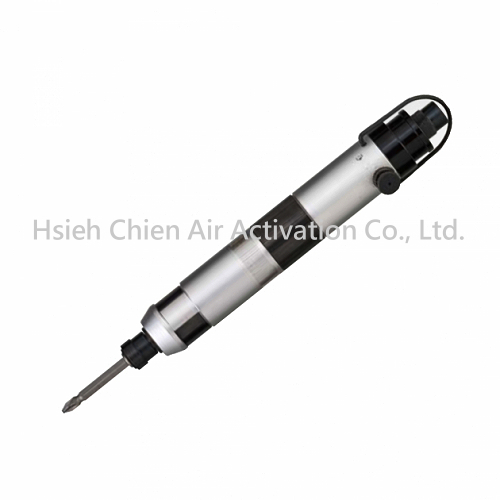

HC-30B/40B/50BSTWA
Light in hand, no twisting
One-hand operation forward and reverse
push button switch
rear exhaust
Stop when the torque is reached
model model | free speed Free Speed | net weight Weight | tool length Overall | air inlet Air Hose Size (Inside Dia) | Tightening torque range Torque Range | air consumption Average | noise noise | ||
RPM | kg | mm | mm | in | Kgf-cm | N m | m3/min | DB | |
HC30B11STWA | 1100 | 0.55 | 214 | 6.35 | 1/4 | 10~25 | 1.0~2.5 | 0.20 | 70 |
HC30B17STWA | 1700 | 0.55 | 214 | 6.35 | 1/4 | 10~20 | 1.0~2.0 | 0.20 | 70 |
HC30B23STWA | 2300 | 0.55 | 214 | 6.35 | 1/4 | 10~15 | 1.0~1.5 | 0.20 | 71 |
HC40B08STWA | 800 | 0.67 | 233 | 6.35 | 1/4 | 08~40 | 0.8~4.0 | 0.30 | 70 |
HC40B15STWA | 1500 | 0.67 | 233 | 6.35 | 1/4 | 10~30 | 1.0~3.0 | 0.30 | 70 |
HC40B21STWA | 2100 | 0.67 | 233 | 6.35 | 1/4 | 10~25 | 1.0~2.5 | 0.30 | 74 |
HC50B04STWA | 380 | 1.00 | 257 | 6.35 | 1/4 | 40~130 | 4.0~1 3 | 0.50 | 74 |
HC50B05STWA | 480 | 1.00 | 257 | 6.35 | 1/4 | 20~100 | 2.0~1 0 | 0.50 | 74 |
HC50B08STWA | 800 | 1.00 | 257 | 6.35 | 1/4 | 15~60 | 1.5~6.0 | 0.50 | 75 |
HC50B17STWA | 1700 | 1.00 | 257 | 6.35 | 1/4 | 15~35 | 1.5~3.5 | 0.50 | 75 |
Light in hand, no twisting
One-hand operation forward and reverse
push button switch
rear exhaust
Stop when the torque is reached
model model | free speed Free Speed | net weight Weight | tool length Overall | air inlet Air Hose Size (Inside Dia) | Tightening torque range Torque Range | air consumption Average | noise noise | ||
RPM | kg | mm | mm | in | Kgf-cm | N m | m3/min | DB | |
HC30B11STWA | 1100 | 0.55 | 214 | 6.35 | 1/4 | 10~25 | 1.0~2.5 | 0.20 | 70 |
HC30B17STWA | 1700 | 0.55 | 214 | 6.35 | 1/4 | 10~20 | 1.0~2.0 | 0.20 | 70 |
HC30B23STWA | 2300 | 0.55 | 214 | 6.35 | 1/4 | 10~15 | 1.0~1.5 | 0.20 | 71 |
HC40B08STWA | 800 | 0.67 | 233 | 6.35 | 1/4 | 08~40 | 0.8~4.0 | 0.30 | 70 |
HC40B15STWA | 1500 | 0.67 | 233 | 6.35 | 1/4 | 10~30 | 1.0~3.0 | 0.30 | 70 |
HC40B21STWA | 2100 | 0.67 | 233 | 6.35 | 1/4 | 10~25 | 1.0~2.5 | 0.30 | 74 |
HC50B04STWA | 380 | 1.00 | 257 | 6.35 | 1/4 | 40~130 | 4.0~1 3 | 0.50 | 74 |
HC50B05STWA | 480 | 1.00 | 257 | 6.35 | 1/4 | 20~100 | 2.0~1 0 | 0.50 | 74 |
HC50B08STWA | 800 | 1.00 | 257 | 6.35 | 1/4 | 15~60 | 1.5~6.0 | 0.50 | 75 |
HC50B17STWA | 1700 | 1.00 | 257 | 6.35 | 1/4 | 15~35 | 1.5~3.5 | 0.50 | 75 |
