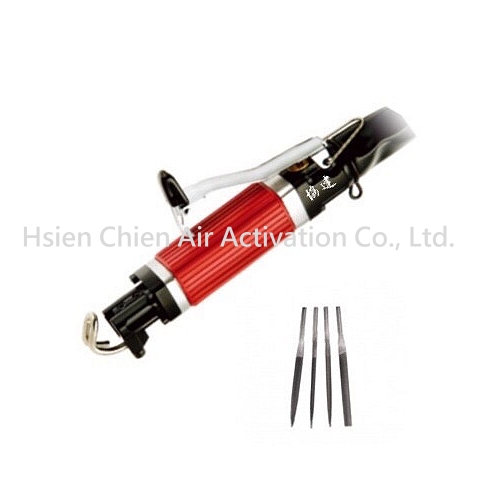

Dual purpose pneumatic saw file
Product Description :

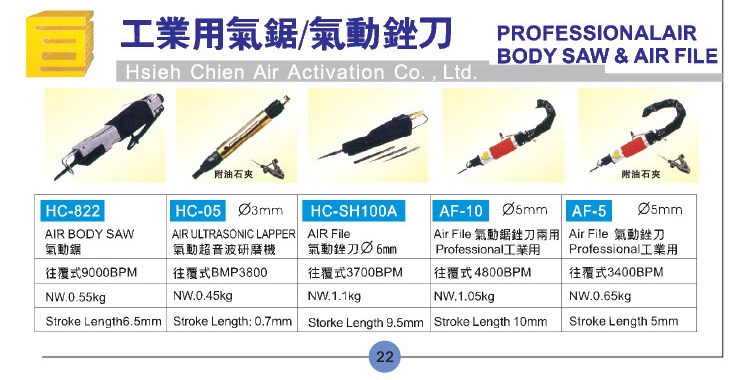

● Model : AF-5
● File diameter : φ5mm
● journey : 5mm
● Impact speed : 3400 BPM
● Inlet size : 1/4'
● Operating pressure: 6kg/cm2
● Air Consumption : 150L/min
● net weight : 600g
● Fuselage length: 170mm
Welcome to the company's website, please do not hesitate to enlighten me advanced.
HSIEH CHIEN AIR ACTIVATION CO., LTD., founded in 1986 AD (the 75th year of the Republic of China), has been adhering to professionalism and providing instant after-sales service since its establishment.
Over the years, it has been well received by customers.
In the early days of its establishment, Xiejian's products were favored by lighting and computer assembly and assembly industries. In order to meet the needs of the industry, it developed and designed multiple lighting and computer casings.
The special tools and special sleeves required for assembly have been the most trusted manufacturers in the industry until now; not only in lighting and computer case assembly business tools
Can be called the best.Along the way, we have also expanded many customers, such as electric vehicles, sanitary ware, home appliances, aluminum doors and windows, aviation, precision electronics, auto parts, medical
It has become a long-term supplier of many brands in the fields of treatment bed assembly and other fields.
This year, automation equipment was introduced to improve production line efficiency, stabilize quality, and reduce labor costs.
In the future, Xiejian will continue to uphold professionalism, quality, and efficiency to provide customers with the best services. ~~Welcome to inquire~~
air toolInstructions for use and care
The instructions for use of pneumatic tools are to deliver dry and low-temperature compressed air through clean piping,Requires a three-point assembly between hard and rubber hose
1.Air tool oil:
Regular rotation and permanent mechanical life for pneumatic tools,Be sure to add pneumatic maintenance oil.
(1)motor part:
daily before use,Please inject from the oil port after use2~3ccpneumatic lubricating oil/Pneumatic maintenance oil.
(2)clutch part:
每1Months to wash the old butter out of the clutch,Then apply a generous amount of new butter,But if you inject too much butter,Please note that it will reduce the function!
with oil hole,Screws should be removed monthly,Add a little.
2.Air Compressor Management:
Pneumatic tools must use low-temperature clean and dry compressed air with a fixed air pressure and sufficient air volume.
(1)Air compressor
be usable2HPstandard compressor
(2)air pressure
Please use standard air pressure,5~7kg/cm2If higher air pressure is used,will enhance the ability,But it will shorten the life of pneumatic tools a lot,So please avoid.
(3)Elimination of impurities and moisture
Impurities and moisture in the compressor are eliminated even if,But hard tube and rubber tube,there will still be a little,Therefore, when loading and unloading pneumatic tool hoses and adapters, please try to remove impurities and moisture as much as possible.
3.air tool running:
(1)Please run freely for a few seconds after oil filling.
(2)engine running:
turn left and rightR壓,Buckle 機,It is the lever when locking the screwLpull the trigger,Do not switch in a slew.
(3)adjustment ability:
After tightening the screws,1/2turn around(約1秒)Rotary stop,Properly screwed in and it's over,Adjust the upper scale of the regulator,The necessary ability can be obtained.
(4)usual screws,約2~3can be installed in seconds,若5More than seconds operation,Screws that cannot be loosened and screws that cannot be torqued,A higher capacity air tool should be used.
(5)when machinery falls from above,Don't knock, hammer, etc. indiscriminately,Please have it ruled out by a professional
(6)Rusted and cracked sockets,Please avoid using it.
caution!Maintenance is better than repair!
Sales method: manufacturing
Sales target market: Taiwan
Inquiry payment method: TT wire transfer, L/C letter of credit
Competitive Features
Fast delivery: production capacity spot, estimated delivery time is 1 day
Accept small orders: HSIEH CHIEN AIR ACTIVATION CO., LTD. The minimum order quantity acceptable for inquiry is 1
Dual-purpose pneumatic saw file accepts original factory commissioned design and manufacture ODM
Dual-purpose pneumatic saw files accept original factory commissioned OEM manufacturing
