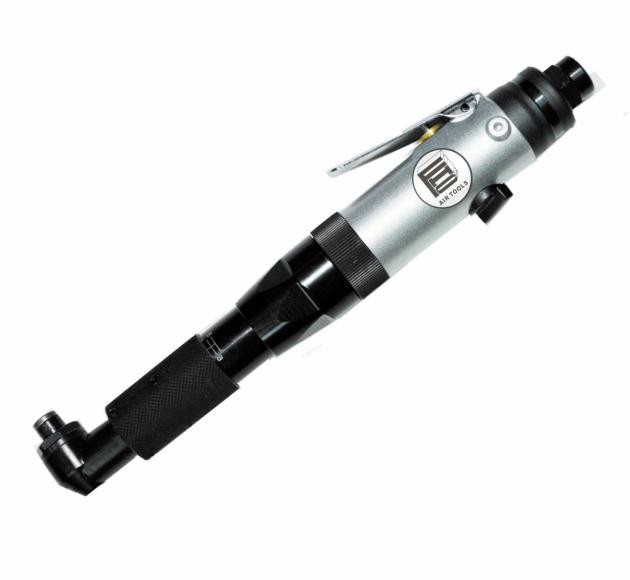

Clutch Air Screwdriver

  • HC-215L

Semi-automatic clutch type pneumatic screwdriver
Semi-automatic clutch driver
Model: HC-215L

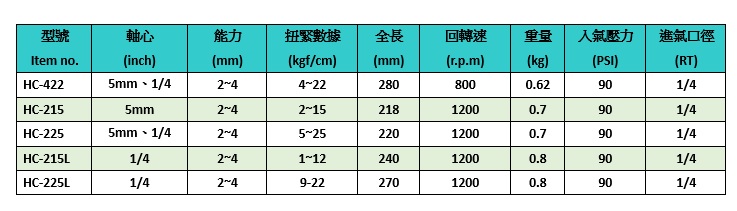

Product Description :
  • Capacity: 2-4 mm
  • Weight: 800g
  • Torque: 2-15kg/cm
  • Speed: 1,200 rpm
  • Air consumption: 0.2 m3/min
  • Air pressure: 6 kg/cm2

air toolInstructions for use and care

The instructions for use of pneumatic tools are to deliver dry and low-temperature compressed air through clean piping
,Requires a three-point assembly between hard and rubber hose
1.Air tool oil:
Regular rotation and permanent mechanical life for pneumatic tools,Be sure to add pneumatic maintenance oil.
(1)motor part:
Please inject from the oil port before and after use every day2~3ccpneumatic lubricating oil/Pneumatic maintenance oil.
(2)clutch part:
1Months to wash the old butter out of the clutch,Then apply a generous amount of new butter,But if you inject too much butter,Please note that it will reduce the function!
with oil hole,Screws should be removed monthly,Add a little.
2.Air Compressor Management:
Pneumatic tools must use low-temperature clean and dry compressed air with a fixed air pressure and sufficient air volume.
(1)Air compressor
be usable2HPstandard compressor
(2)air pressure
Please use standard air pressure,5~7kg/cm2If higher air pressure is used,will enhance the ability,But it will shorten the life of pneumatic tools a lot,So please avoid.
(3)Elimination of impurities and moisture
Impurities and moisture in the compressor are eliminated even if,But hard tube and rubber tube,there will still be a little,Therefore, when loading and unloading pneumatic tool hoses and adapters, please try to remove impurities and moisture as much as possible.
3.air tool running:
(1)Please run freely for a few seconds after oil filling.
(2)engine running:
turn left and rightR,Buckle ,It is the lever when locking the screwLpull the trigger,Do not switch in a slew.
(3)adjustment ability:
After tightening the screws,1/2turn around(1)Rotary stop,Properly screwed in and it's over,Adjust the upper scale of the regulator,The necessary ability can be obtained.
(4)usual screws,2~3can be installed in seconds,5More than seconds operation,Screws that cannot be loosened and screws that cannot be torqued,A higher capacity air tool should be used.
(5)when machinery falls from above,Don't knock, hammer, etc. indiscriminately,Please have it ruled out by a professional
(6)Rusted and cracked sockets,Please avoid using it.
caution!Maintenance is better than repair!

Origin: Taiwan
Sales method: manufacturing
Sales target market: Taiwan
Inquiry payment method: TT wire transfer, L/C letter of credit

Competitive Features
Accept small orders: HSIEH CHIEN AIR ACTIVATION CO., LTD. The minimum order quantity acceptable for inquiry is 1
The clutch type pneumatic screwdriver accepts the original factory entrusted with the design and manufacture of ODM
Clutch-type pneumatic screwdriver accepts OEM commissioned by the original factory
