Automatic Feeding Nail Pulling Machine

Quantity:
  • HY-102

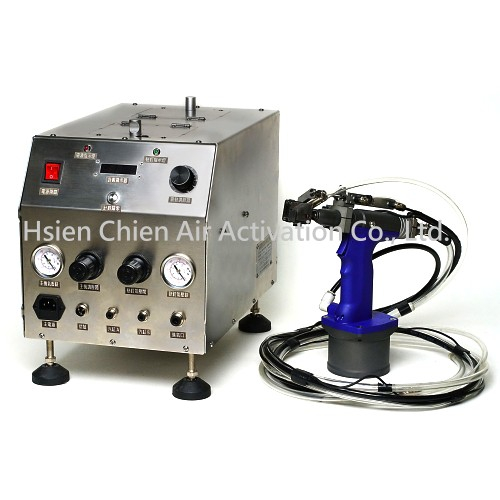

Automatic Feeding Nail Pulling Machine

Product Description :
● Voltage: 220ㄒ50HZ
● Working air pressure: 5.5kg / cm  ² / 85PSl
● Size: Length 39cm / Width 25.5cm / Height 26.5cm
● Net weight: 23kg
● Gross weight: 31kg
● Feeding speed: 40pcm / min
● Capacity: 1000pcs
● Continuous feeding works uninterrupted
● The gun body is light in weight
● riveting tight
● Zero mistakes
● Speed ​​up production line operation
● Customized specifications according to customer needs

Product Usage :

The automatic feeding rivet gun is used for customized rivets, and the customer needs to provide the customized specifications of the rivets. Do not share rivets of different materials and specifications.This product adopts excellent
High-quality synthetic materials, with light weight in hand, fast rivet pulling speed, tight riveting, and accelerated production line operation, it is an ideal rivet connecting tool.
Application fields: computer mainframe, medical equipment, grill, mechanical and electrical maintenance, communication equipment, automobile industry.


productInstallation method and steps:
1. Place the host on a flat work surface.

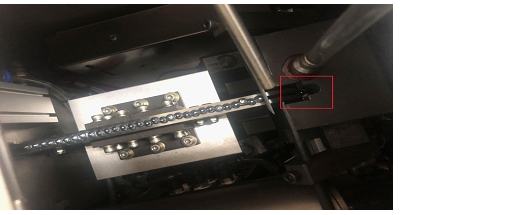

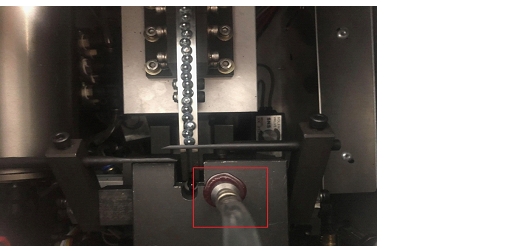

2. Install the tool's upper pull nail delivery tube into the nail outlet hole inside the host.

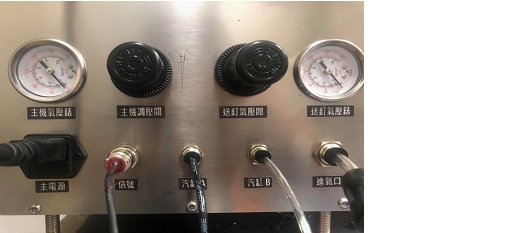

3. Insert the signal line and cylinder line connected to the tool into the corresponding position of the host


4. Turn on the power (220V), the equipment installation is completed after the air source.


Product Instructions:

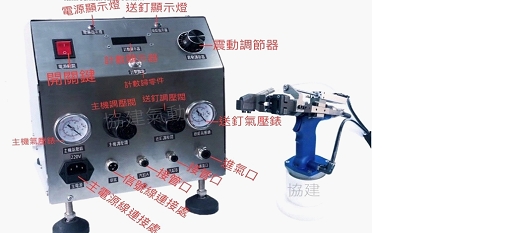

1. Turn on the power, connect the air source, and check whether the vibration adjustment knob of the main engine is at the designated position. If there is no vibration, you can fine-tune the knob to the appropriate speed.

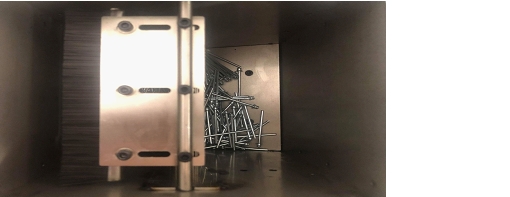

2. Pour the pull studs into the storage position, the amount should not exceed the height of the track

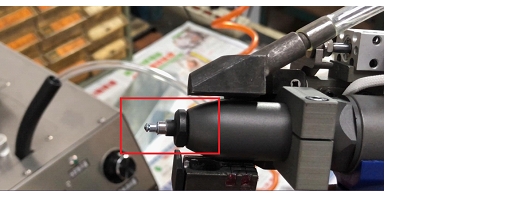

3. Before operating the nail puller for the first time, check whether there is a pull nail at the front end of the nail puller.


4. When performing the nail pulling action for the first time, pull the trigger of the nail pulling machine, the machine will arrange the nails in a row, automatically transport them to the muzzle, align the material and start working.


Precautions for product handling:
Read the instruction manual before installing, operating or servicing this tool.
1. In order to ensure the accuracy and stability of feeding, please do not drop the gun head or hit the feeding slide rail.
2. The tool should be used within the design range (Try not to replace pull studs of different specifications and use non-220VVoltage), regularly check the damage and performance of the tool
If the performance condition is not met, the disassembly of the tool should be performed by the trained personnel to troubleshoot the problem.
3. Do not bend the delivery pipe and confirm the activity of the equipment in the working environment.
4. If the feeding is not smooth, please use the magnetic stick to suck out the standby rivets in the host to rearrange them. Remember not to pull the trigger of the rivet gun multiple times to cause damage.

5.  When disassembling parts, the air source must be disconnected.


Product maintenance:
1. Air pressure adjustment: The air pressure is about 3-4.5kgf/cm3.
2. Keep it clean, wipe the main unit with a little oil, do not use water.
3. Keep ventilated and dry.
4. Regularly check the plug and power performance.
5. Check daily whether there are mice biting the gas pipe and wires.


General Product Troubleshooting:
1. If the rivet pulls continuously, the hydraulic oil of the rivet gun should be replaced.
2. When it is found that there is a blockage in the mouth of the rivet gun, the residual nail slag should be cleaned up in time.
3. If the problem cannot be eliminated, please call immediately and send someone to deal with it.


~~Welcome to inquire~~




Sales method: manufacturing
Sales target market: Taiwan
Inquiry payment method: TT wire transfer, L/C letter of credit

Competitive Features
Various designs: HSIEH CHIEN AIR ACTIVATION CO., LTD. provides various designs of automatic feeding nail pulling machine
The automatic feeding nail pulling machine accepts the design and manufacture ODM entrusted by the original factory
The automatic feeding nail pulling machine accepts OEM commissioned by the original factory
